1.1 Basic Feature: CircRNAs Visualization

1.1.1 Java Virtual Machine needs to be installed before running this program. See 7 HOW TO INSTALL JAVA VIRTUAL MACHINE.

1.1.2 Download and decompress CircView.tar.gz. Double click "CircView.jar" to launch the program.

1.1.3 Download and decompress circRNA test data human.tar.gz.

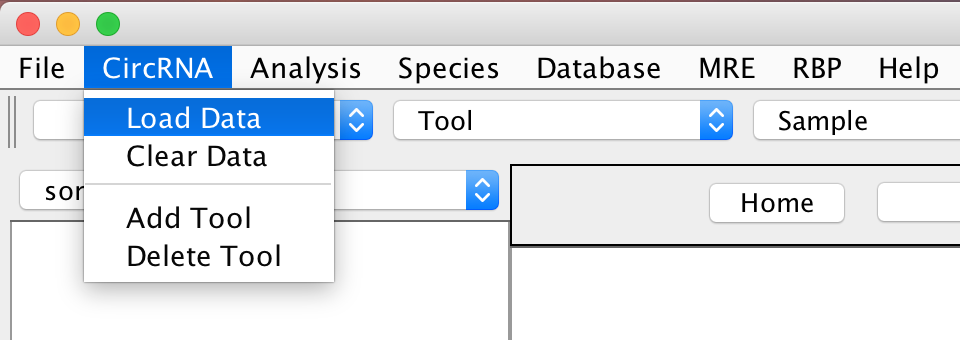

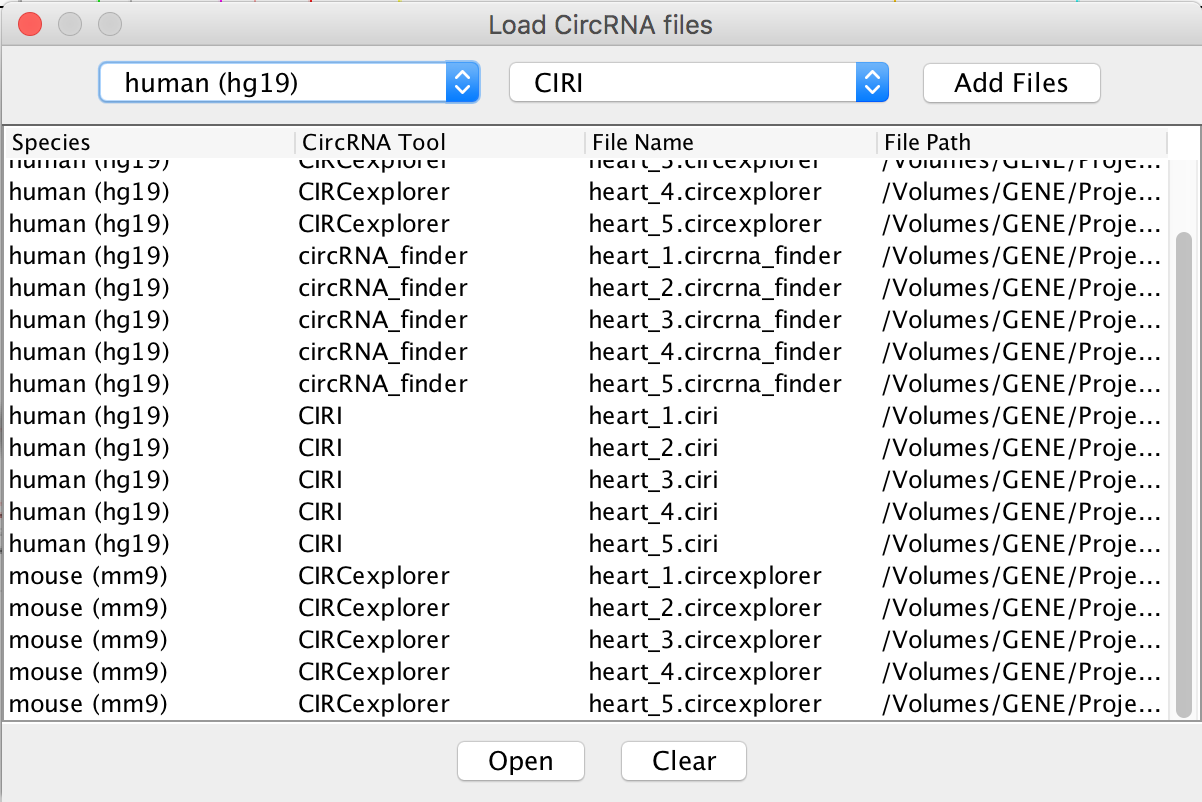

1.1.4 Click "CircRNA"->"Load Data" to load circRNA files according species and tools.

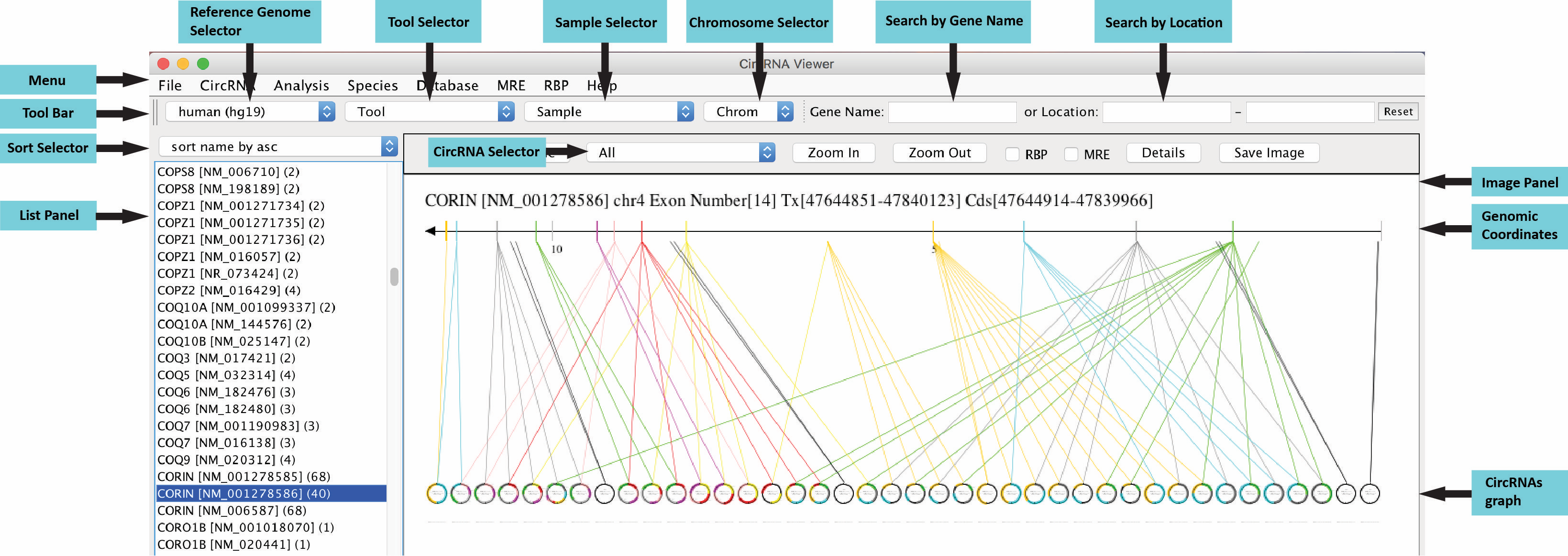

1.1.5 Click gene transcript name on list panel to view the image of the circRNAs.

1.1.6 Gene transcript can be searched by name or location.

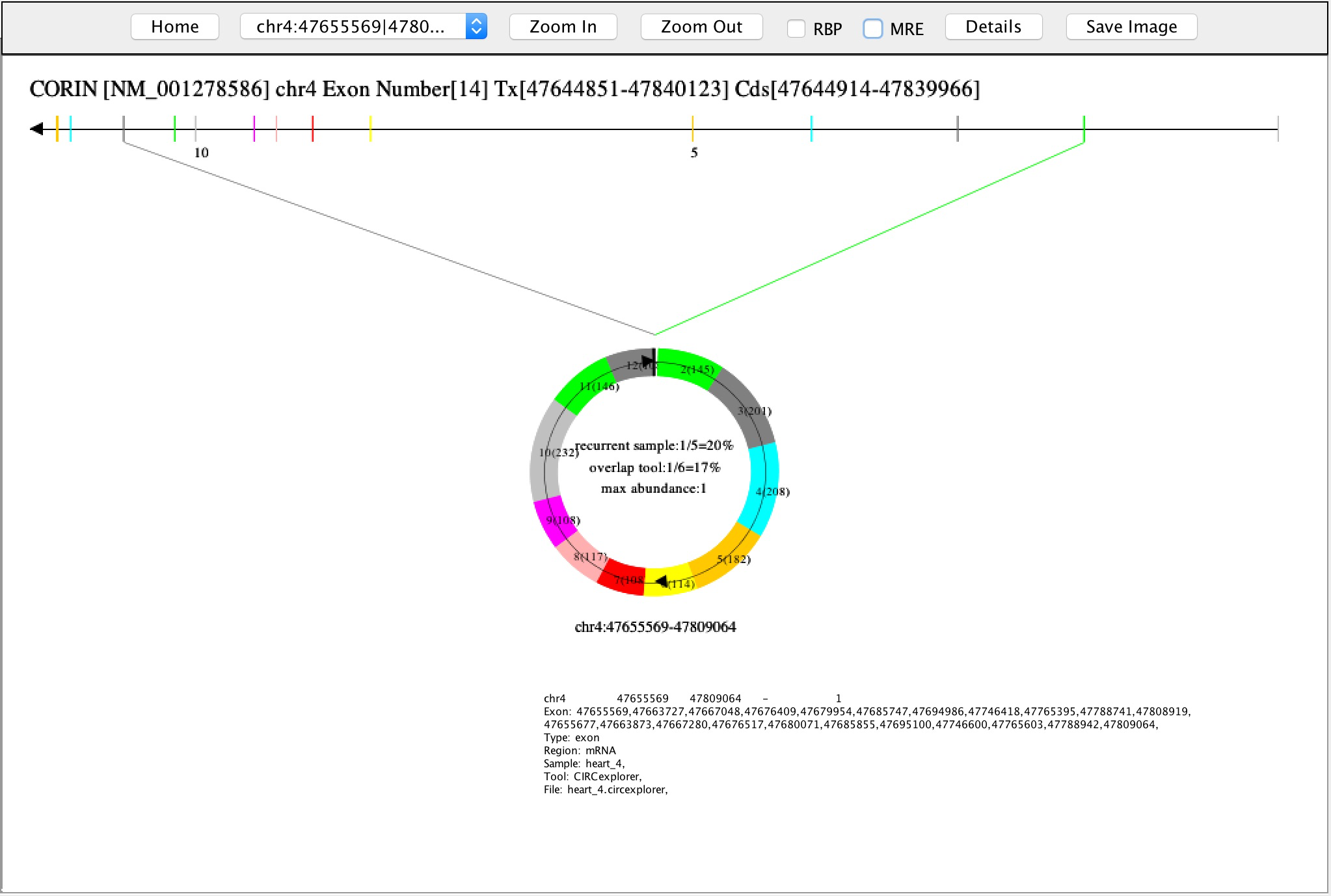

1.1.7 Click one "Circle" to view details of each circRNA.

1.1.8 Detailed information and image of CircRNAs can be saved for further use.

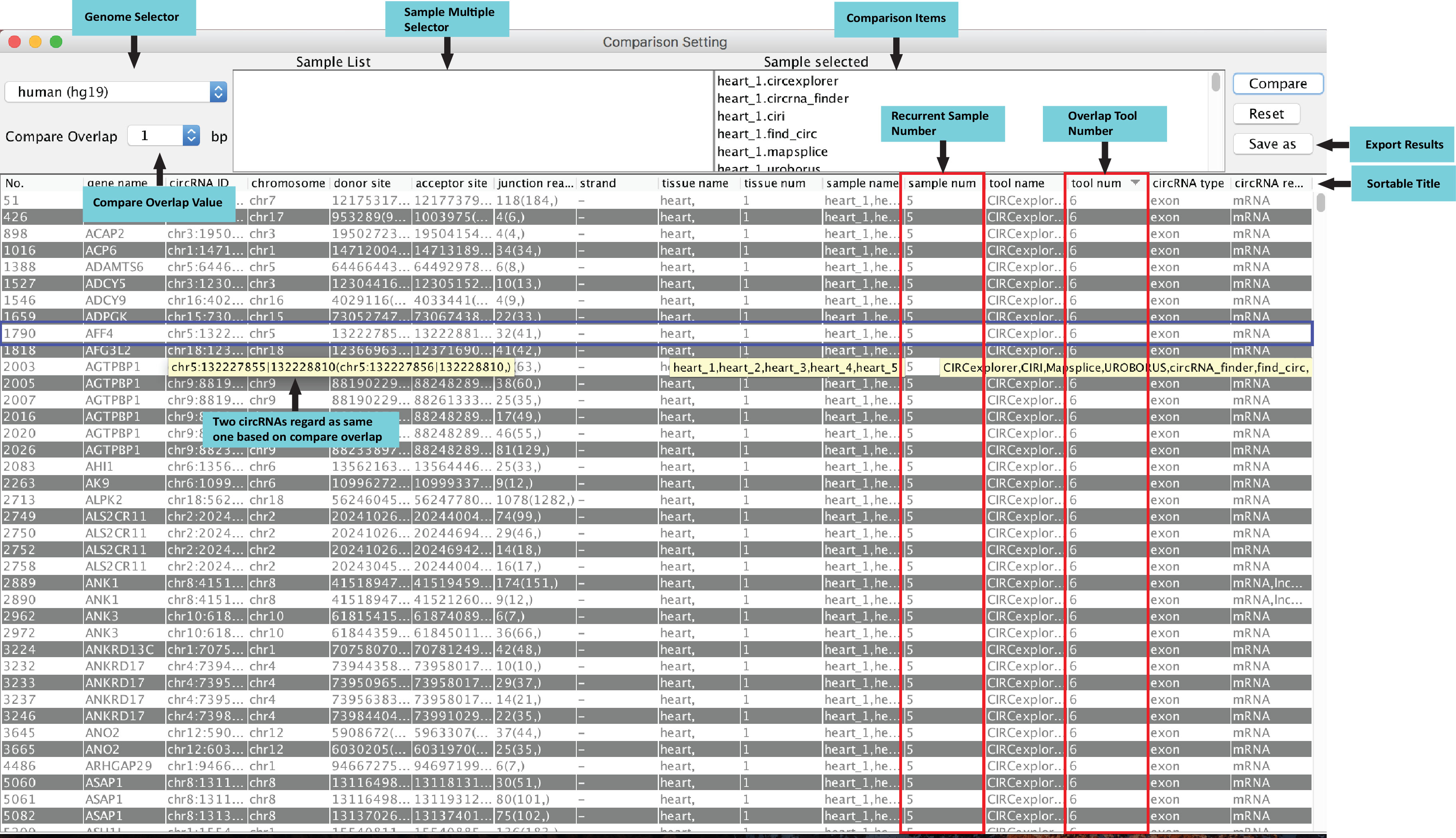

1.1.9 Click "Analysis"->"Comparison" to make a comparison between circRNAs with different samples and/or tools.

1.2 Advanced Feature: MRE and RBP sites Visualization on CircRNAs

1.2.1 MySQL needs to be installed, see 8 HOW TO INSTALL MYSQL

1.2.2 Restart "CircView.jar"

1.2.3 Download and decompress MRE data mre_human.tar.gz

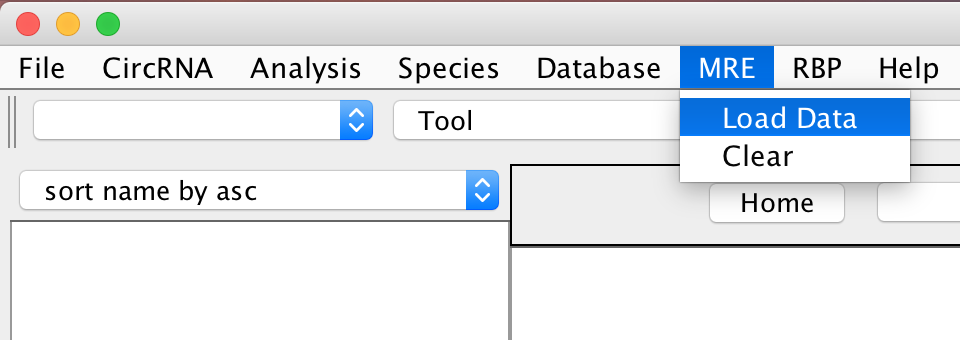

1.2.4 Click "MRE"->"Load Data" to load MRE file.

1.2.5 Download and decompress RBP data rbp_human.tar.gz

1.2.6 Click "RBP"->"Load Data" to load RBP file.

1.2.7 Load circRNAs data, see 1.1.4

1.2.8 Check MRE or RBP to add MRE sites (blue lines) or RBP sites (red triangles) to CircRNAs

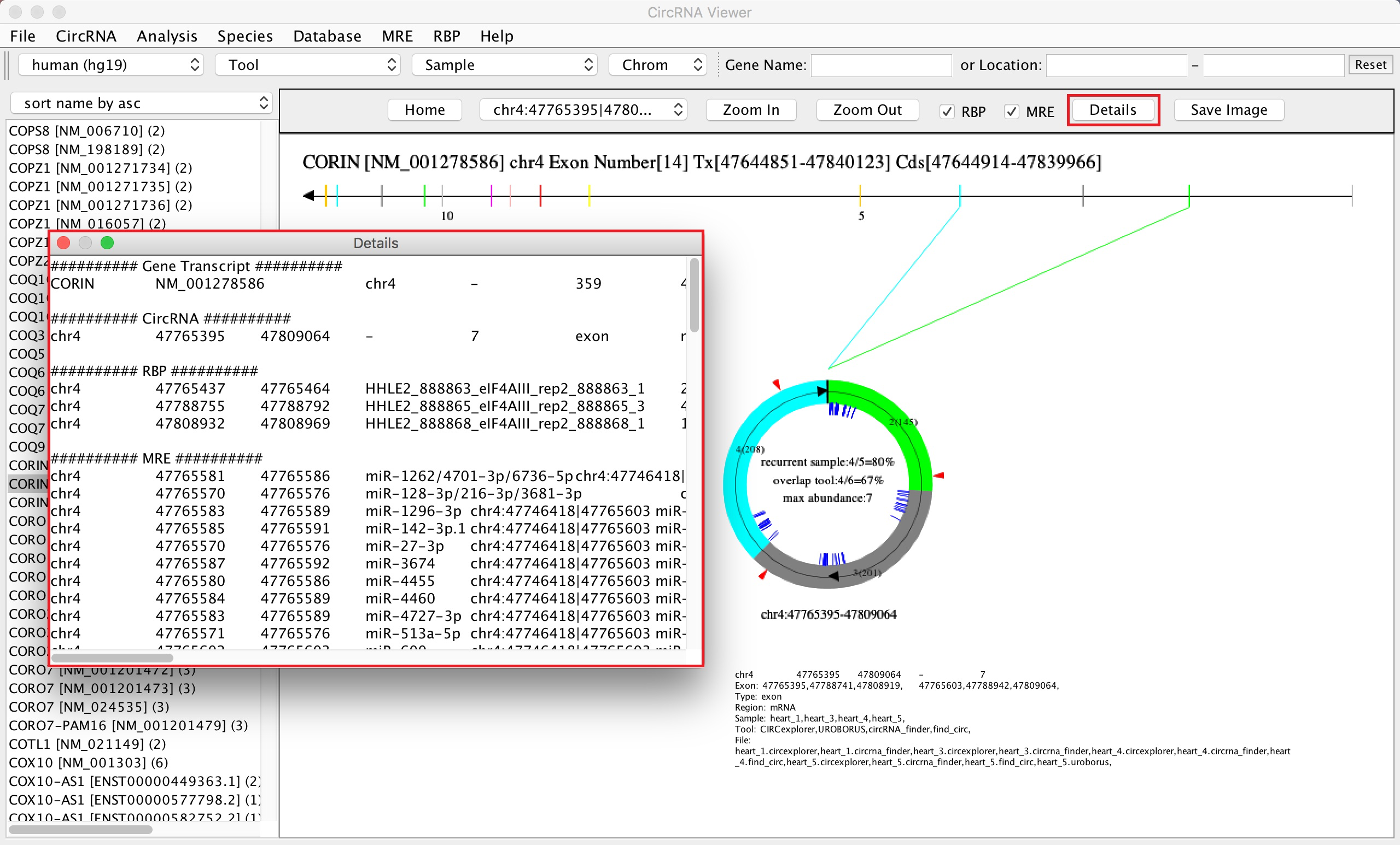

1.2.9 Click "Details" button to see detailed information of MRE and RBP sites

Download CircView application from CircView.tar.gz

Download circRNAs test data from human.tar.gz

Download MRE data from mre_human.tar.gz

Download RBP data from rbp_human.tar.gz

3.1 CircRNAs Identification Tool Management

CircView integrates 6 CircRNAs identification tools (CIRCexplorer, circRNA_finder, CIRI, find_circ, Mapsplice, and UROBORUB) by default.

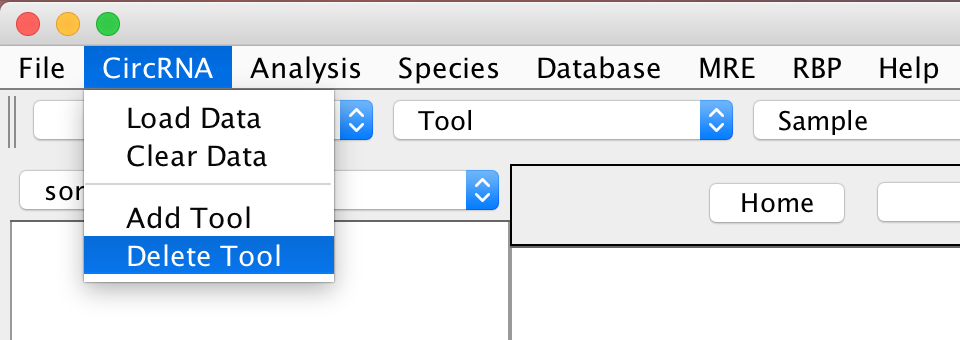

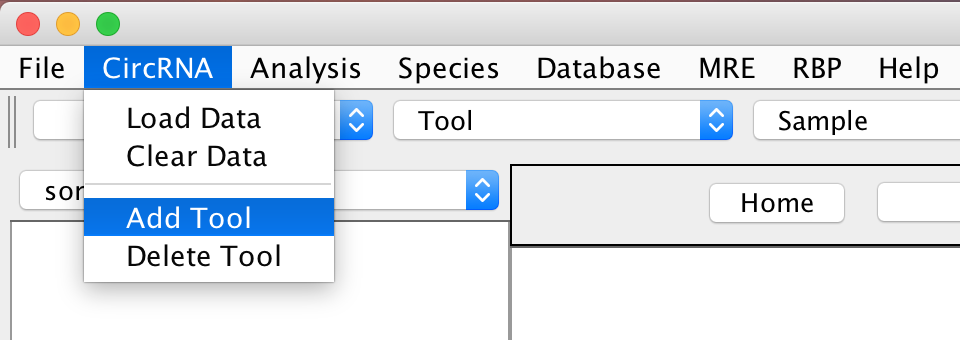

Users can add or delete tool by using menu "CircRNA"->"Add Tool" or "CircRNA"->"Delete Tool".

3.2 CircRNAs Data Management

CircView can load CircRNAs data directly from output of default 6 CircRNAs identification tools.
Users can also import circRNAs identified by other tools with six tab delimited columns, including chromosome, start position, end position, running number/name, junction reads and strand.

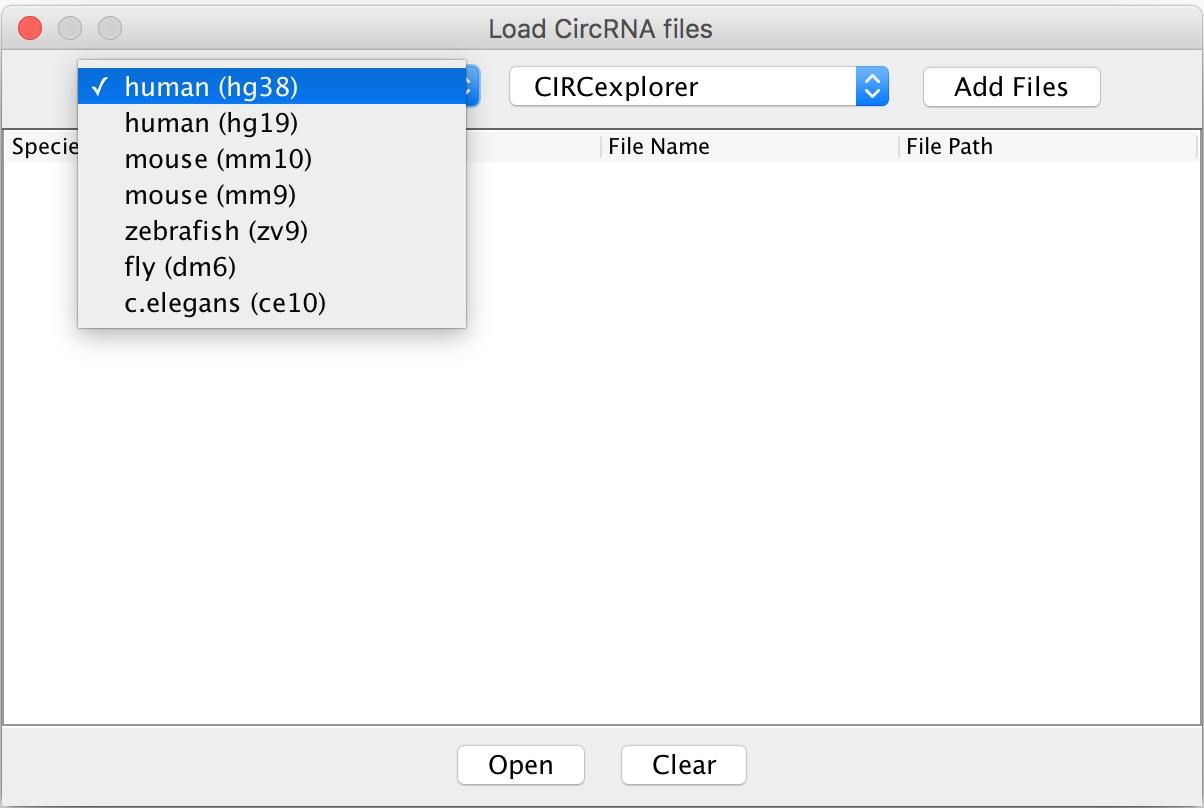

CircView provides 7 species (Human (hg19), Human (hg38), Mouse (mm10), Mouse (mm9), Zebrafish (zv9), Fly (dm6), C.elegans (ce10)) by default.

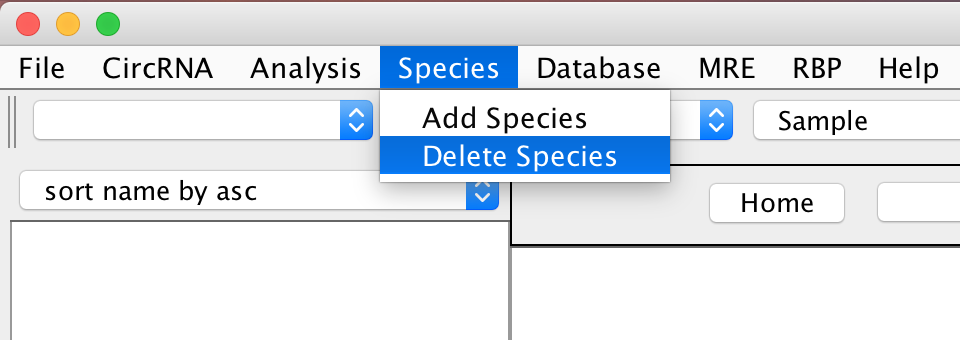

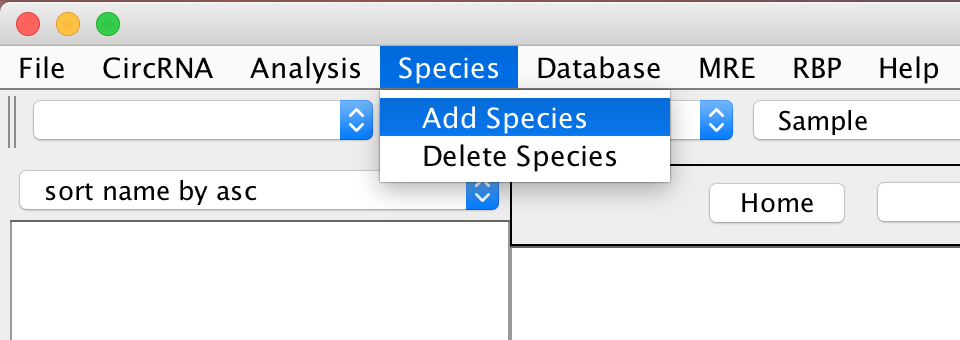

Users can also add or delete species annotation data with compatible format by using menu "Species"->"Add Species" or "Species"->"Delete Species".

CircView provides links to existing circRNA databases, including Circ2Traits, CircBase, CircInteractome, CircNet, circRNADb, StarBase, and TSCD.

CircRNAs mainly function as sponges for the regulatory elements, such as miRNA respond elements (MREs) and RNA binding proteins (RBPs). CircView provides advanced features to display regulatory elements.

This module requires the users to install MySQL locally, see 8 HOW TO INSTALL MYSQL.

Users can load and display the MRE data identified by TargetScan (http://targetscan.org/) and/or
the RBP data identified by starBase (http://starbase.sysu.edu.cn/) or any other software. The format requires five tab delimited columns, including chromosome, start position, end position, MRE/RBP name and description.

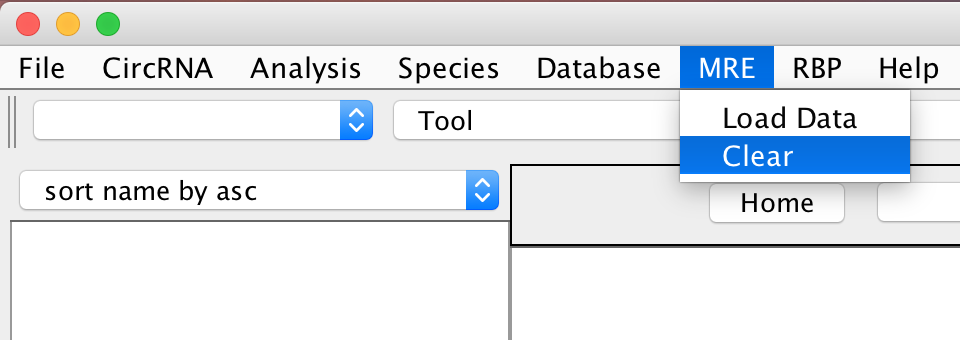

Load MRE or RBP file will create table and deposit data into MySQL database, and Clear MRE or RBP will remove data from the database. As the data are persistent, users should not load the same data for more than once.

Java Virtual Machine needs to be installed before running this program. Simply access http://www.java.com, download Java, and install it.

8.1 For Windows

8.1.1 Download and decompress MySQL Installation file from mysql_windows.tar.gz

8.1.2 Double click "NDP46-KB3045557-x86-x64-AllOS-ENU.exe" to install .NET Framework.

8.1.3 Double click "mysql-installer-community-5.7.16.0.msi" to install MySQL. Please create password "12345" for user root during installation.

8.2 For Mac OS

8.2.1 Download MySQL Installation file from mysql-5.7.17-macos10.12-x86_64.dmg

8.2.2 Double click "mysql-5.7.17-macos10.12-x86_64.dmg" to install MySQL. Please create password "12345" for user root during installation.
